Wirekinetics produces world best quality Fecralloy alloy fiber and already wins the reputation in the market, according to our alloy professionals and metal fiber production technologies. The Fecralloy alloy fiber is widely used in ultra high temperature resistance (normally above 900 ℃), combustion (specially in pre-mix system), and automobile filration for catalytic converter.

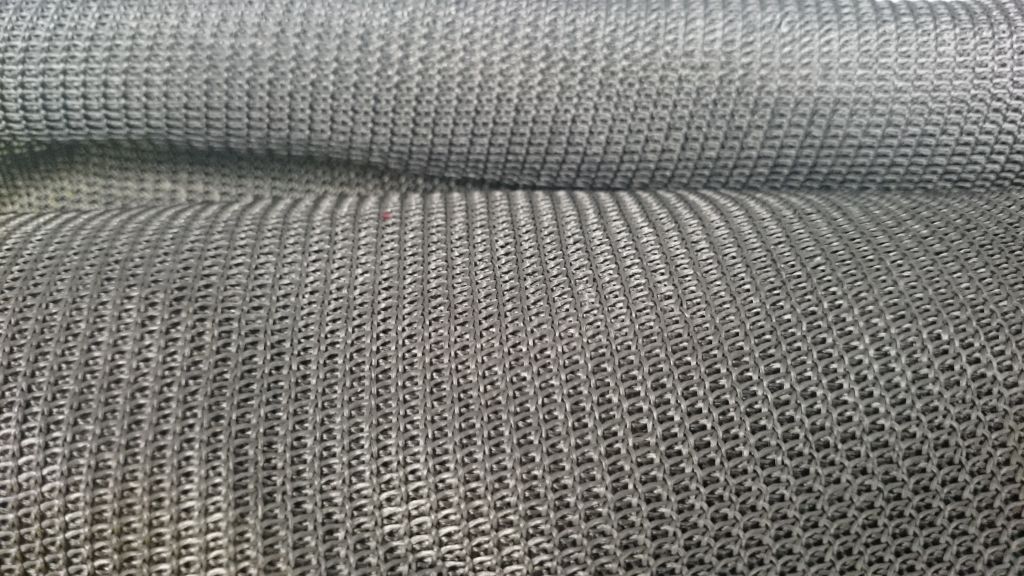

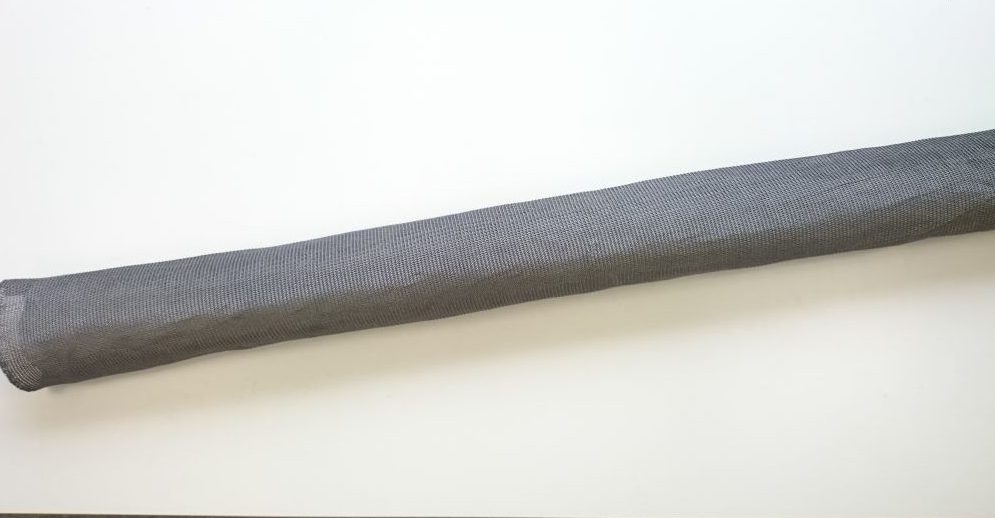

We also develop the patented Fecralloy alloy fiber fabric through our advanced textile engineering technology for burner to low the CO and NOx emission for strict regulation in air pollution.
Products:

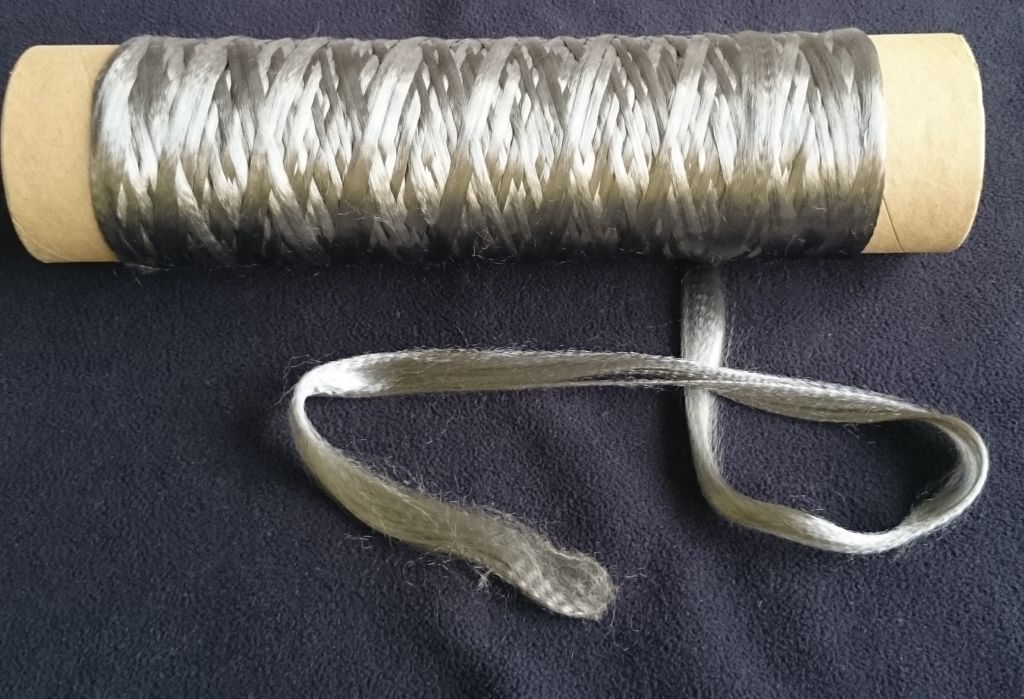

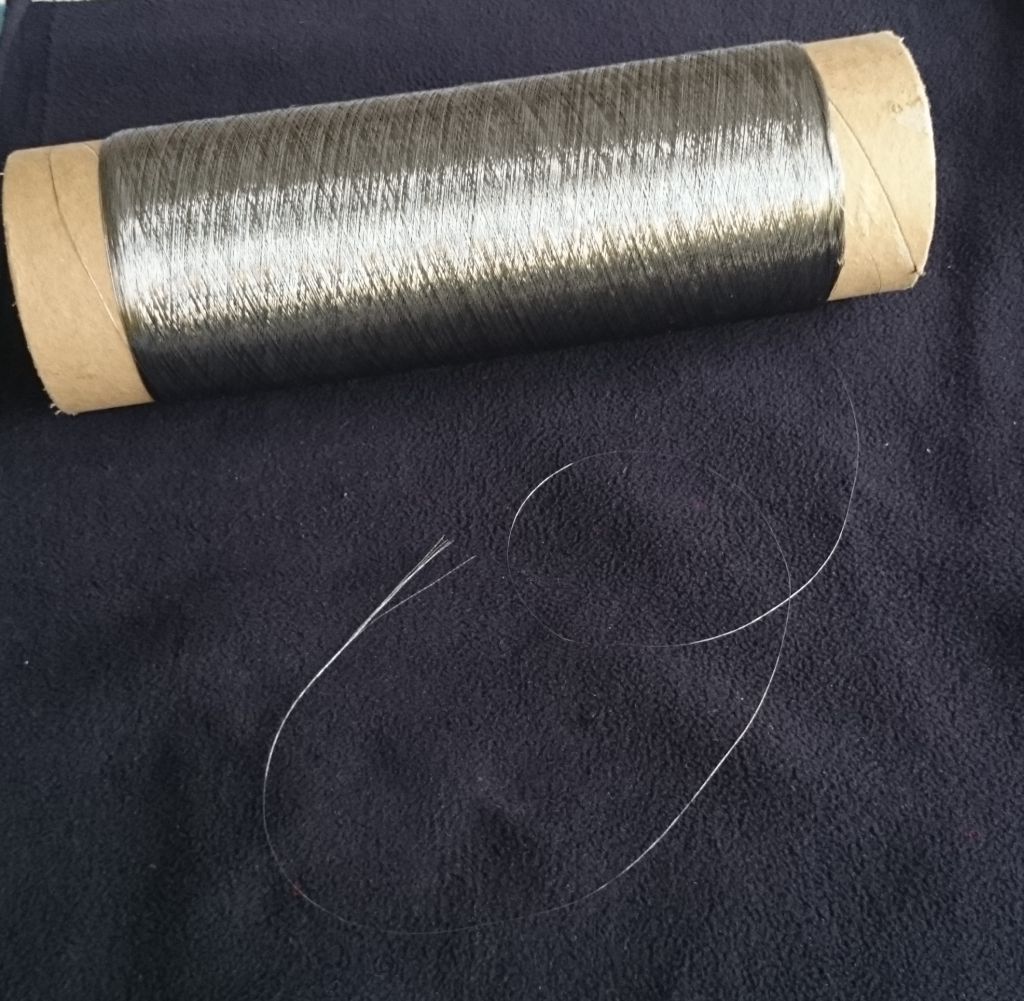

1. Fecralloy alloy fiber
2-2 Specification:
The Type of the Metal Fiber Fabrics
| Type | No. | Weight (kg/m2) | Permeability (cc/s.cm2) | Width(mm) | Thickness(mm) |
| WHT-F | F800 | 0.8±10.15 | 1000±15, Max 1200 | ||
| F1100/440 | 1.1±10.15 | 400±130 | 3.3±10.15 | ||
| F1100/340 | 1.1±10.15 | 340±130 | 2.0±10.15 | ||
| F1400/280 | 1.4±10.15 | 280±130 | 2.0±10.15 | ||
| WHT-C | C1200/440 | 1.2±10.15 | 440±130 | 2.1±10.15 | |
| C1600/340 | 1.6±10.15 | 340±130 | 1.6±10.15 |
Remark:
F1100/440，for industry infrared heating
F1400/270，forwiderangeheatingadjustmentboilerburner
C1600/340，fortwostageboilerburner(blue flame)
Specifications of Metal Fiber Fabrics:
WHT-F series
| ITEM | STANDAND | DATAS | REMARKS | |
| MATERIAL | FeCrAl, ST | FeCrAl, Lt | ||
| WEIGHT(kg/m2) | 0.8/1.1/1.4 ±10.15 | |||
| PERMEABILITY (cc/s.cm2) | Gb5454-1997 | 440/340/280 ±130 | Can be adjusted according to customer’s demand | |
| WIDTH(mm) | 1000 ±15 | Maximum 1200mm | ||
| THICKNESS(mm) | GB/T3820-1997 | 3.3/2.2/2.0 ±10.15 | YG (B) 141D model | |
| TEMPERATURE (℃) | ≦950, MAX 1050℃ | ≦1100, MAX 1250℃ | ||
WHT-C series
| ITEM | STANDAND | DATAS | REMARKS | |
| MATERIAL | FeCrAl, ST | FeCrAl, Lt | ||
| WEIGHT(kg/m2) | 1.2/1.6 ±10.15 | |||
| PERMEABILITY (cc/s.cm2) | Gb5454-1997 | 440/340 ±130 | Can be adjusted according to customer’s demand | |
| WIDTH(mm) | 1000 ±15 | Maximum 1200mm | ||
| THICKNESS(mm) | GB/T3820-1997 | 3.3/2.2/2.0 ±10.15 | YG (B) 141D model | |
| TEMPERATURE (℃) | ≦950, MAX 1050℃ | ≦1100, MAX 1250℃ | ||
